Ⅰ、Product Features
1.Portable design: easy to carry and transport
2.It is equipped with information monitoring of voltage and chip temperature for test protection to prevent overcharge and over discharge.
3.Multiple discharge shutdown thresholds are available: multiple discharge shutdown thresholds are provided to avoid overcharge and discharge.
4.7-inch LCD touch display: the super large LCD displays all real-time data and charts quickly, and supports touch operation. The user-friendly input mode and menu design simplify the operation process
5.Large built-in internal memory: It supports the automatic storage of multiple separate charging records without computer monitoring, and it is not easy to lose the memory storage even in case of unexpected shutdown, so as to ensure the safety of data. And it can provide data management operations such as verification, deletion, USB interface to download data, etc.
6.Multiple protection & Alarm: It can provide sufficient protection measures for various abnormal conditions in the discharge process. It can be automatically terminated, and the LCD display will give a prompt and a beep warning to assist the user in proper handling.

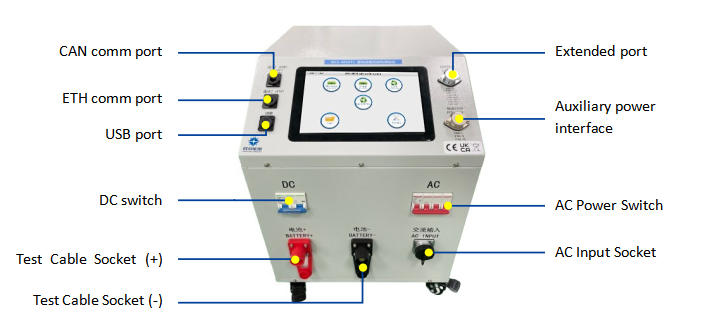

7.When the tester system is used in the field, it is composed of host, BMS communication detection module and discharge cable. The host consists of color display, data processing unit, data acquisition unit, auxiliary power supply unit, discharge unit and panel operation unit.
8.Use Environment
No corrosive, explosive, insulating gas and conductive dust etc.
9.Working Conditions
Temperature: -10~60℃
Humidity: 0-95%
10.Impact on Environment and Energy
The discharge part of the tester is of built-in load discharge type. The chemical energy of the battery is converted into heat energy consumption. Pay attention to heat dissipation and ventilation in the test area.
11.Safety
The tester is provided with hardware and software protection for reverse connection, over-voltage, over-current, over temperature, communication, etc.
Ⅱ、Technical Characteristics
Power input - AC | Power Input Standard：single-phase / three-phase |
Power Supply：90~280Vac / 342~418Vac |
Rated Voltage：110/220/380Vac |
Power Frequency：45Hz～55Hz 60hz |
Battery input - DC | Input voltage:10V-500Vdc |
Host’s operation mode | Touch display |
Display | 7-inch TFT LCD, resolution: 1080 * 720 |
Data transfer | Udisk |
Data report | Data report can be generated by supporting software after data is uploaded to PC |
Internal data storage | 16G |
Data search | Support data preview in memory |
Data acquisition and communication of battery box | Can data bus |
voltage measurement | ±1%FS ± 1% FS |
current measurement | ±1%FS ± 1% FS |
Display accuracy of group voltage | ±0.1V |
Display accuracy of group current | ±0.1A |
Control accuracy of charging and discharging current | ±1% |
Charging voltage range | 10-500Vdc |
Discharging voltage range | 10-500Vdc |
Charging current range | 0~40A（＜300V） 0~20A(＞300V) |
Discharging current range | 0~40A（＜100V） 0~20A(＞100V) |
Charge control | Constant current charging + constant voltage charging |
Working mode of discharge | Constant current discharge |
Data acquisition of charge and discharge | Internal active measurement + external CAN communication data acquisition |
Charging and discharging protection of electric box | Protection against overcharge, over discharge and over temperature of battery string |
Host protection | Shutdown protection for over temperature, over current and current out of control |
Stop actuator | DC air switch |
Reverseconnection protection | Support |
Exception protection | Power failure of power cord and main cable |
Over temperature protection | Temperature of resistance box over 85 ℃; temperature of radiator over 100 ℃ |
Alarm prompt | LCD display + buzzer |
Safety test |
Withstand voltage test | AC input-case: 2000Vdc 1min AC input-case |
DC input-output: 1000vdc 1min DC input-housing |
Work environment |
Heat dissipating | Forced air cooling |
Temperature | Working temperature range: - 5 ~ 40 ℃; storage temperature: - 40 ~ 70 ℃ |
Humidity | Relative humidity 0-90% (40 ± 2 ℃) |
Ⅲ、Size and Weight
Size: 572×410×544(mm)
Weight:：50KG
Ⅳ、Standard Configuration
No. | Items | Quantity | Unit | Instruction |

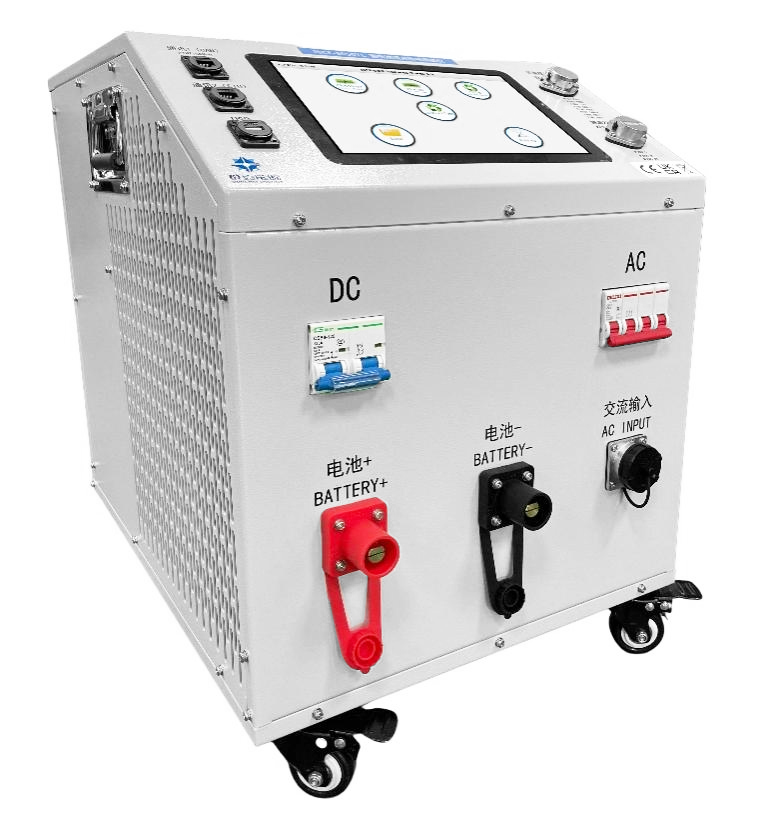

1 | IBCE-5050TL host | 1 | set |
|
2 | AC220V\20A common power cable | 3 | piece | 1、National standard three-prong plug 2、Bare copper single-phase cable (L\N\G) 3、Three-phase five-wire cable |
3 | Positive and negative cable | 2 | piece | 1 Red 1 Black |
4 | CAN data line | 4 | piece | 1、Standard network wire 2、C1.0 *1\C2.0 *1 (12V power supply, suitable for BM-6440A1, ESM-6640P1, ESM-6476AS1, ESM-76100CS1) 3、C3.0 *1 (48V power supply, suitable for ESM-51320AS1, ESM-57280AS1, ESM-57280AS5) 4、Extended wire (including CAN 48VDC 12VDC) |
5 | U disk | 1 | piece |
|
6 | Manual | 1 | book |
|
7 | Portable aluminum box | 1 | piece |
|
8 | Warranty card | 1 | piece |
|
9 | Certificate of quality | 1 | piece |
|
